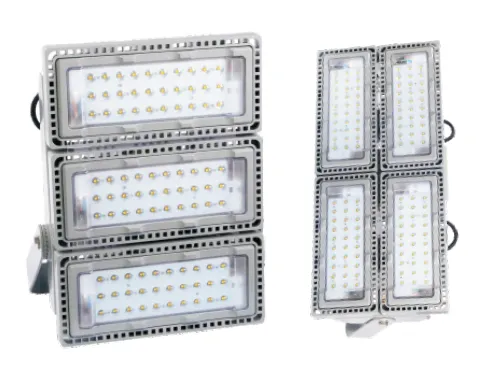

GSD90-I Series Explosion Proof Fixed Type LED Light
GSD90-I Series Explosion Proof Fixed Type LED Light
GSD90-I Series Explosion Proof Fixed Type LED Light is part of the EXGUANGS Explosion Proof Lighting range, developed for reliable operation in hazardous and demanding industrial environments.
This product supports safe electrical installation and stable performance in applications where explosion protection, durable construction and dependable equipment selection are essential.
Technical Specifications
- Rated Voltage
- AC220V (Range: AC90～305V)
- Rated Frequency
- 50/60Hz (Range: 47～63Hz)
- LED Power
- 70W, 105W, 140W, 200W
- Insulation Class
- Class I
- IP Rating
- IP65
- Corrosion Grade
- WF2
- Weight
- 70W/5.4kg, 105W/6.7kg, 140W/8.0kg
- Cable Range
- Φ8mm～Φ12mm
- Mounting Type
- Pedestal Mounting / Wall Mounting / Ceiling Mounting
- Features
- ● Independent cooling system improves heat dissipation performance and extends LED lifetime. ● Sealed driver design enhances explosion-proof safety, waterproof performance and reliability. ● Multi-level surge protection ensures stable operation under harsh electrical conditions. ● IP65 protection allows reliable use in various indoor and outdoor environments.
