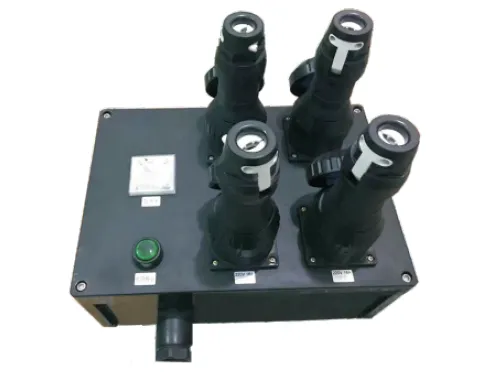

GSJQ Series
GSJQ Series
GSJQ Series is part of the EXGUANGS Explosion Proof Control Equipment range, developed for reliable operation in hazardous and demanding industrial environments.
This product supports safe electrical installation and stable performance in applications where explosion protection, durable construction and dependable equipment selection are essential.
Technical Specifications
- Rated Voltage
- AC220/380V (Voltage can be customized)
- Rated Current
- Main switch 10A– 800A, Branch switch 1A– 630A
- IP Rating
- IP65
- Corrosion Grade
- F2
- Cable entry/exit
- Top-in & Top-out, Bottom-in & Bottom-out (According to customer requirements)
- Incoming cable OD
- 6mm– 80mm
- Outgoing cable OD
- 6mm– 80mm
- Enclosure
- High-strength GRP enclosure
- Sealing Design
- Labyrinth sealing structure ensures reliable waterproof and dustproof performance.
- Components
- Equipped with MCB or MCCB for safe power distribution and protection.
- Hardware
- Stainless steel fasteners and silicone rubber seals for harsh environments.
- Application
- Used as a power supply interface for maintenance equipment and electrical devices in AC 50Hz systems up to 380V and DC systems up to 440V.
